HC Series
HC10
10 kg Payload Collaborative Robot
Обзор

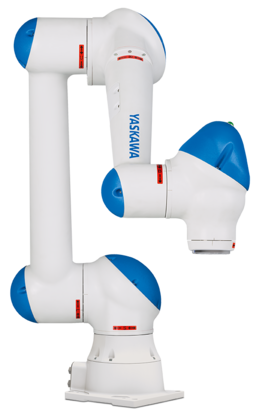

The MOTOMAN HC10 is a 6 axis human-collaborative robot with a payload of up to 10 kg. It provides an absolute reach (S/L-Axis center of rotation to R/T-Axis center of rotation) of 1,379 mm and an effective reach (S/L-Axis center of rotation to Point P) of 1,200 mm.
Operator’s safety is assured by a Power and Force Limit technology that stops the robot in case of contact with an operator.
The MOTOMAN HC10 robot can operate without additional protective measures like a safety fence, depending on the risk assessment.

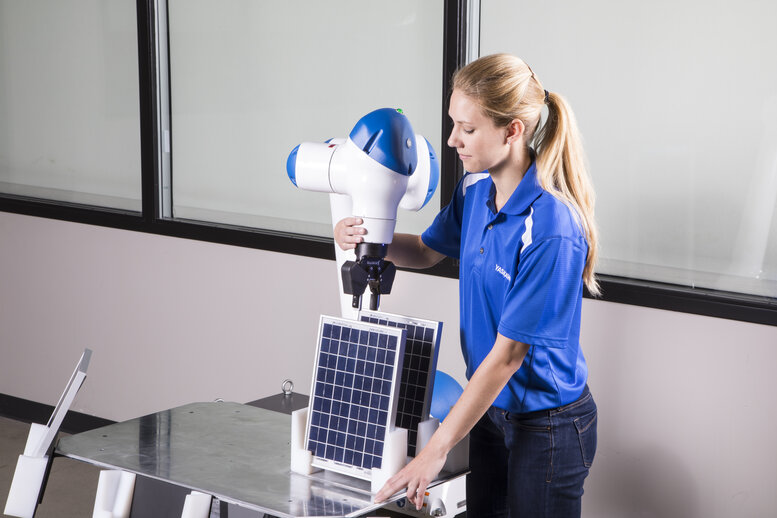

Installation, Setup and Programming is very easy and intuitive, by using hand guiding or Smart Pendant.
Технические детали
- Количество осей
- 6
- Полезная нагрузка
- 10 kg
- Максимальный Рабочий Диапазон
- 1379 mm
- Повторяемость
- 0.1 mm
- Вес
- 47 kg
- Источник питания
- 1 kVA
- Maximum Speed S Axis
- 130 °/s
- Maximum Speed L Axis
- 130 °/s
- Maximum Speed U Axis
- 180 °/s
- Maximum Speed R Axis
- 180 °/s
- Maximum Speed B Axis
- 250 °/s
- Maximum Speed T Axis
- 250 °/s
- Варианты монтажа
- Floor, Wall, Ceiling
- Дальнейшие уточнения
- x Нет
Загрузки
Имя | |||
Flyer Robot HC10 / HC10DT
Human-Collaborative Robot Brochures | английский |
Brochures | английский | |
Flyer Robot HC10 / HC10DT
Mensch-Roboter-Kollaboration (Human-Collaborative-Roboter) Brochures | немецкий |
Brochures | немецкий | |
Flyer HC10 Brochures | испанский | Brochures | испанский | |
Robot Assistants_Collaborative Applications Brochures | английский | Brochures | английский | |
Assistenzroboter_Kollaborative Applikationen Brochures | немецкий | Brochures | немецкий | |
Robótica Colaborativa Brochures | испанский | Brochures | испанский | |
Flyer Robot HC10 / HC10DT Brochures | французский | Brochures | французский | |
HC10 2D CAD/CAE | | CAD/CAE | ||
HC10 3D CAD/CAE | | CAD/CAE |
