SDA Series

CSDA10F

Dual Arm Robot for Lab Automation

Обзор

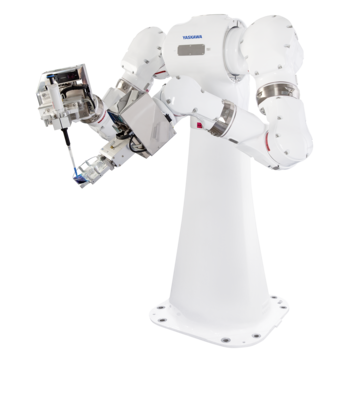

The MOTOMAN CSDA10F has a payload of 10 kg and reach of 835 mm per arm, and is designed for laboratory use.

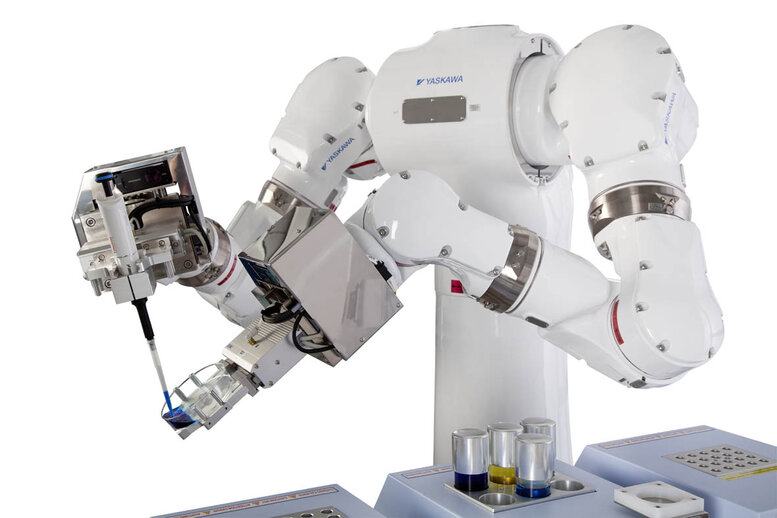

Other than pure handling done by conventional single arm robots, the MOTOMAN CSDA10F dual arm robot can really process complicated lab automation tasks like sample preparation or complex workflow protocols, even over days and nights without human intervention. Due to it's cleanroom, washdown and IP67 Design of arms and wrists, it is well suited to automate tasks in pharmaceutical, clinical diagnostics, chemical or biomedical laboratories. It's high repeatability and superb reliability opens new doors in medicine research and development.

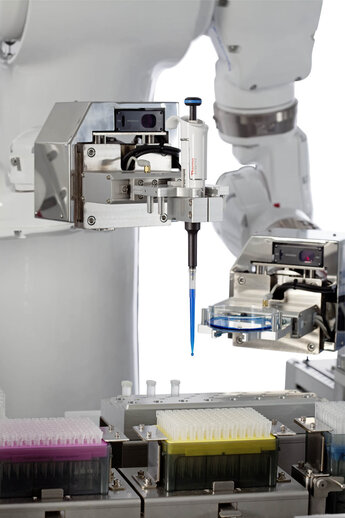

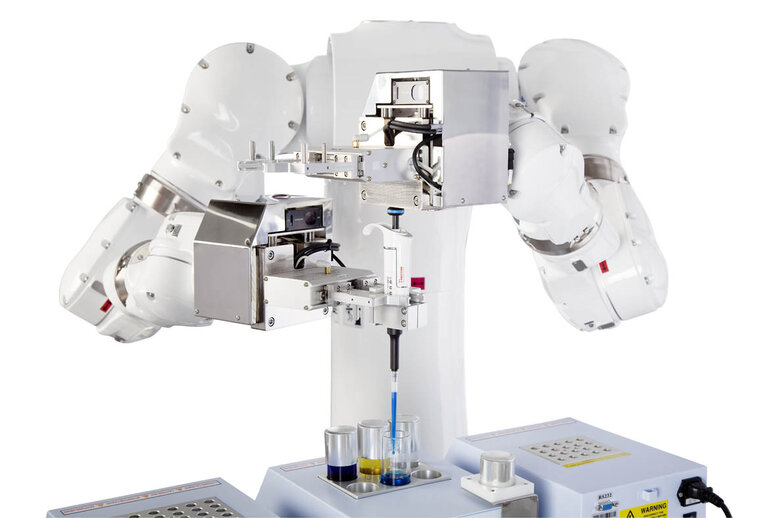

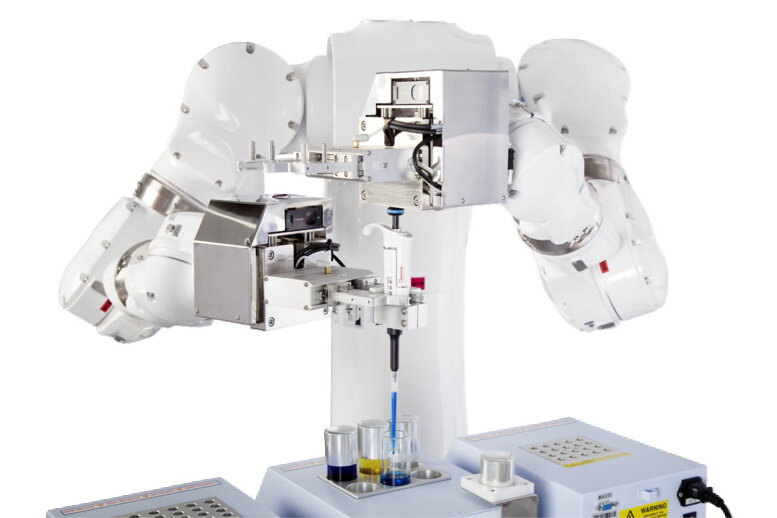

The MOTOMAN CSDA10F can handle any existing conventional laboratory equipment in your lab. It executes protocols step by step precisely in a way as they have been designed for manual laboratory tasks - 24/7 if required, without deviations or faults. Dedicated automation equipment, e.g. liquid handling systems, is not required. This allows straight forward, simple and highly flexible automation concepts without the need to invest in expensive non-flexible automation. No matter how varied the work sequences or how often they have to be refined or modified: You can teach the robot your new ideas very quickly.





Технические детали

  • Количество осей
  • 15
  • Полезная нагрузка
  • 10 kg
  • Максимальный Рабочий Диапазон
  • 720 mm
  • Повторяемость
  • 0.1 mm
  • Вес
  • 220 kg
  • Источник питания
  • 2 kVA
  • Maximum Speed S Axis
  • 130 °/s
  • Maximum Speed L Axis
  • 170 °/s
  • Maximum Speed U Axis
  • 170 °/s
  • Maximum Speed R Axis
  • 200 °/s
  • Maximum Speed B Axis
  • 200 °/s
  • Maximum Speed T Axis
  • 400 °/s
  • Варианты монтажа
  • Floor
  • Дальнейшие уточнения
  • x Нет
Обработка ... Введите имя, описание, продукт или ключевые слова Показ _START_ – _END_ / _TOTAL_ Всего записей Отфильтровано из _MAX_ Всего записей Нет записей Нет записей First Last Сортировать по возрастанию Сортировать по убыванию

Загрузки

Имя
Flyer Robot CSDA10F
Flexible Lab Automation with robot MOTOMAN CSDA10F Data sheet | английский
Data sheet английский
Flyer Robot CSDA10F
Flexible Laborautomation mit Roboter MOTOMAN CSDA10 Data sheet | немецкий
Data sheet немецкий
CAD for Robot Series CSDA10F
15-axis dual-arm robot, 2D data package CAD/CAE |
CAD/CAE
CSDA10F_3D CAD/CAE | CAD/CAE
