MPX Series

MPX3500

Painting and Door Opener Robots for Professionals

Обзор

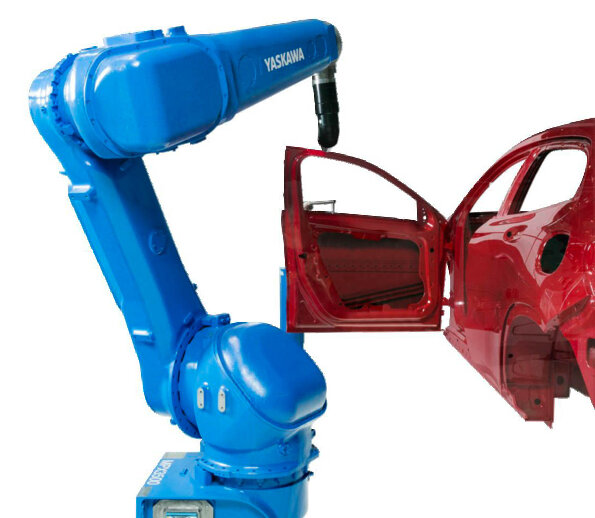

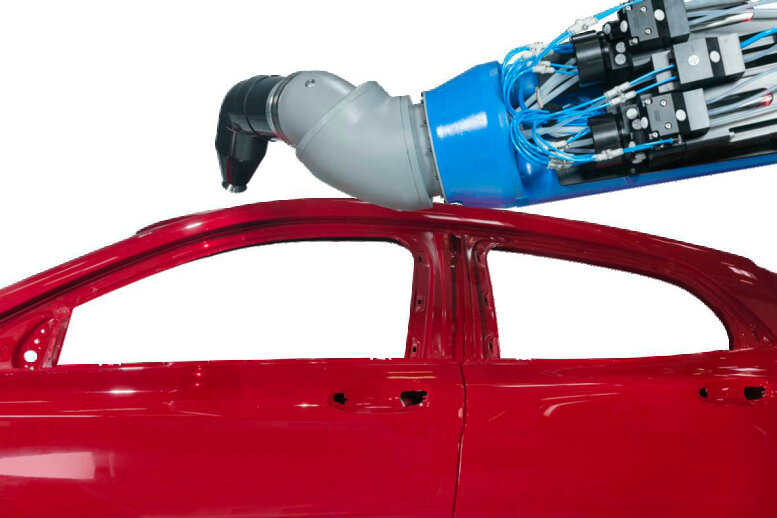

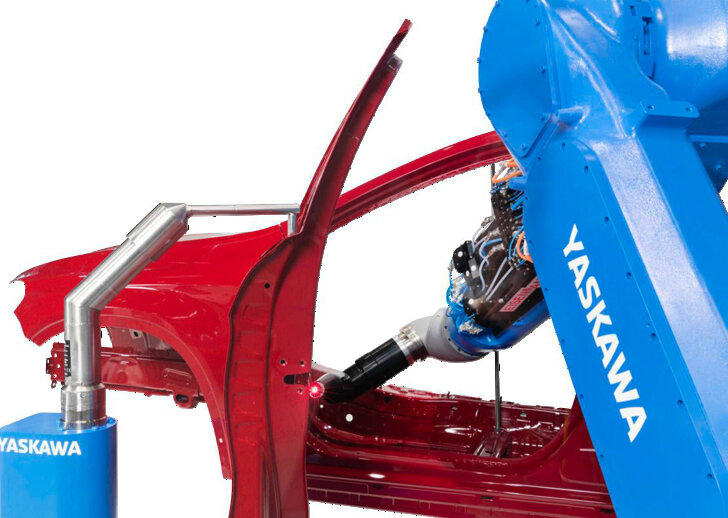

The MOTOMAN MPX3500 (ATEX conformity) is a Painting robot with a reach of 2.700 mm (floor mounted) respective 3.500 mm (wall mounted), designed primarily for Car Body Exterior & Interior Painting in the Automotive Industry. Manipulator Body and process arm provide good mounting space even for large dosing and applicator technology, supporting several paint application technology suppliers. L-Axis and robot base provide different mounting and cable inlet options to place the robot closer to the object, thus minimizing the footprint of the paint booth. Manipulator and Teach Pendant are available for ATEXT Cat 2 or 3 Standards.

The MPL3500 offers excellent path performance - smooth and fast motion and quick wrist reorientations. The MOTOMAN Paint Software Package simplifies the programming significantly by providing features like Mirroring (left/right side of the booth), Path Switching functions and recovery after stop or color run out.

Технические детали

Количество осей
6

Полезная нагрузка
15 kg

Максимальный Рабочий Диапазон
2700 mm

Повторяемость
0.15 mm

Вес
560 kg

Источник питания
3 kVA

Варианты монтажа
Ceiling, Wall, Floor

Загрузки

Имя
Flyer Robot MPX3500 Fast and flexible painting robot Data sheet \| английский	Data sheet	английский
Flyer Robot MPX3500 Schneller und flexibler Lackierroboter Data sheet \| немецкий	Data sheet	немецкий
MPX3500_2D CAD/CAE \|	CAD/CAE
MPX3500_3D CAD/CAE \|	CAD/CAE
MPX3500_L-type_A0x-E0x_2D CAD/CAE \|	CAD/CAE
MPX3500_L-type_F0x_2D CAD/CAE \|	CAD/CAE
MPX3500_R-type_A1x-E1x_2D CAD/CAE \|	CAD/CAE
MPX3500_R-type_F1x_2D CAD/CAE \|	CAD/CAE
