GP Series

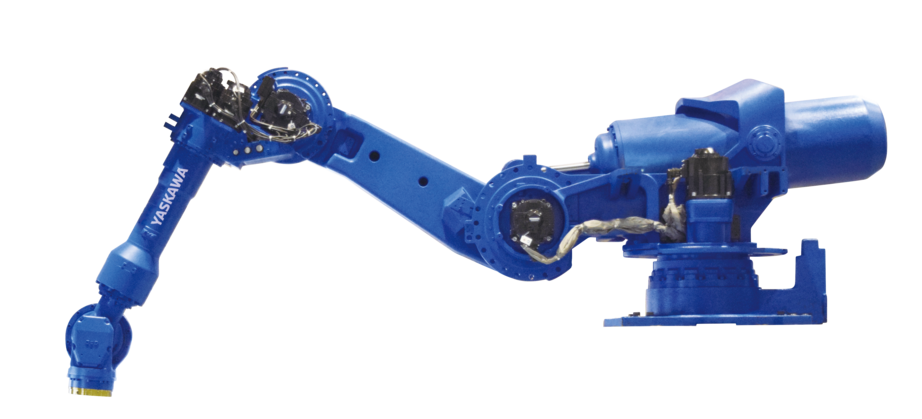

GP200R
Shelf mounted robot with high payload
Обзор
The flexible, shelf-mounted MOTOMAN GP200R robot provides an extended reach of 3.140 mm, a payload of 200 kg and an outstanding repeatability of better than +/- 0.05 mm. A streamlined upper arm provides easy access to parts in confined spaces. As being a shelf-type robot, the motion range is extended for working below the robot base level, allowing to the robot to be installed on a raised steel structure to save floor space. The latest Sigma7 Servo Motor technology and high inertia wrist allows fast axis speed and acceleration to decrease cycle time and optimize production output.
The MOTOMAN GP200R is well suited for heavy spot welding guns and grippers in spot welding, press transfer, material handling and machine tending.
Технические детали
- Количество осей
- 6
- Полезная нагрузка
- 200 kg
- Максимальный Рабочий Диапазон
- 3140 mm
- Повторяемость
- 0.05 mm
- Вес
- 1830 kg
- Источник питания
- 5 kVA
- Maximum Speed S Axis
- 90 °/s
- Maximum Speed L Axis
- 85 °/s
- Maximum Speed U Axis
- 85 °/s
- Maximum Speed R Axis
- 120 °/s
- Maximum Speed B Axis
- 120 °/s
- Maximum Speed T Axis
- 190 °/s
- Варианты монтажа
- Shelf-Mounted
- Дальнейшие уточнения
- x Нет
