GP Series

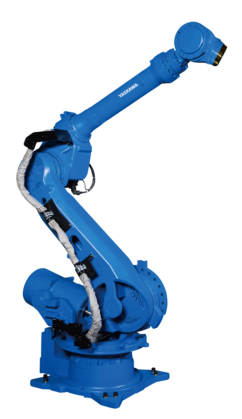

GP215
Multi-Purpose Handling Robot with extended Reach and 215 kg Payload
Обзор
The MOTOMAN GP215 handling robot provides a payload of 215 kg and a maximum reach of 2,912 mm, combined with an excellent repeatability precision of +/- 0,05 mm.
This six-axis GP215 robot provides fast and accurate performance to boost productivity for high-payload handling applications. Featuring a wide work envelope, this robot uses a streamlined upper arm for easy access to parts in confined spaces. While the wide wrist motion range reduces interference with fixtures, the reduced interference design enables close proximity placement of robots. Latest generation high performance Sigma7 servo drive technology is leading to fast axis speeds and powerful acceleration. A high moment and inertia wrist enables the GP215 robot to efficiently handle larger and heavier payloads for superior performance.
The GP215 is perfect for a big variety of applications, such as Material Handling, (Remote) Laser Welding, Spot Welding, Press Tending and (due to it's excellent mechanical stiffness) also for Material Cutting/Trimming.
Технические детали
- Количество осей
- 6
- Полезная нагрузка
- 215 kg
- Максимальный Рабочий Диапазон
- 2912 mm
- Повторяемость
- 0.05 mm
- Вес
- 1340 kg
- Источник питания
- 5 kVA
- Maximum Speed S Axis
- 100 °/s
- Maximum Speed L Axis
- 90 °/s
- Maximum Speed U Axis
- 97 °/s
- Maximum Speed R Axis
- 120 °/s
- Maximum Speed B Axis
- 120 °/s
- Maximum Speed T Axis
- 190 °/s
- Варианты монтажа
- Floor
- Дальнейшие уточнения
- x Нет
